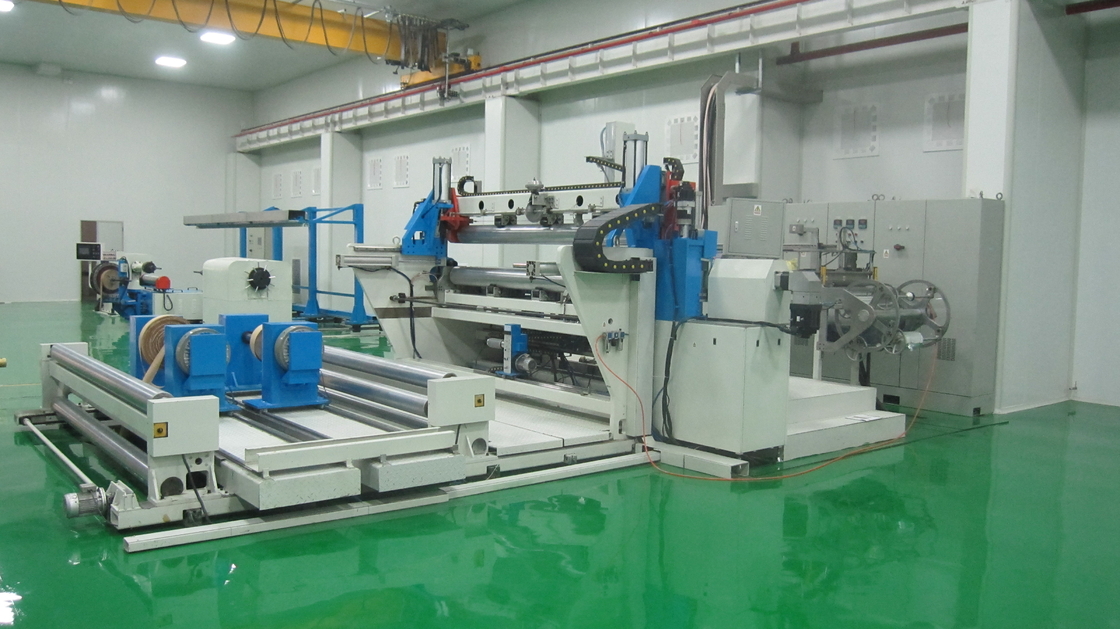

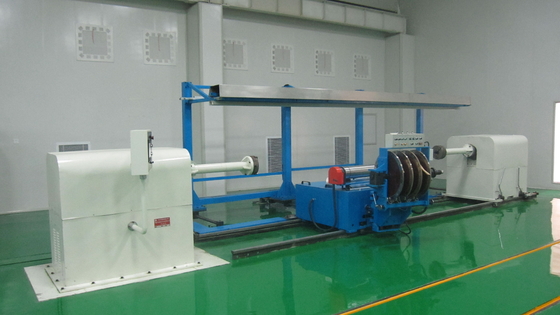

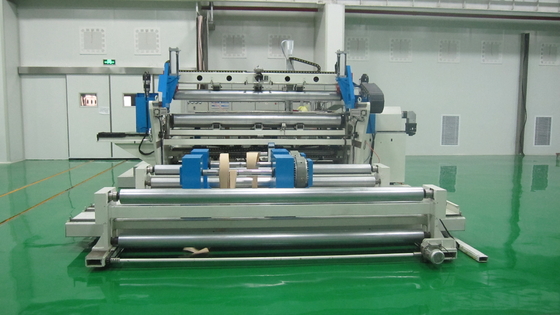

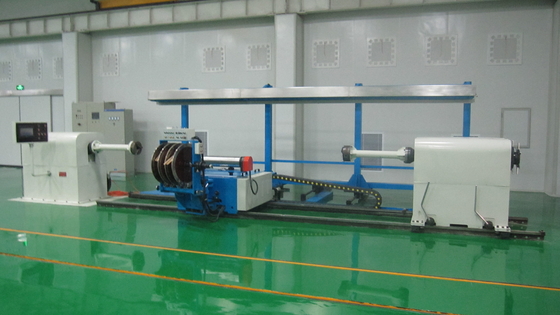

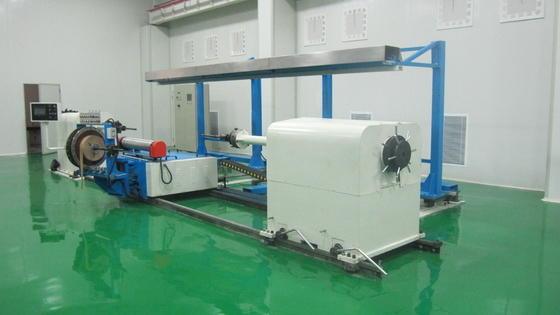

Automatic CNC Paper Winding Machine / Paper Wrapping Machine

6. Height of equipment center: 1000 mmF (from screen worktable to standing worktable)

7. Paper width: 2800  mm

8. Paper thickness: 0.05～0.12 mm (flat paper)

9. Inner diameter of original scroll: Φ76  mm

10. Outer diameter of original scroll: Φ600 mm

11. Weight of original scroll: 600kg

12. Number of cutters: 2

Technical requirements

1. The core tube is supported by the pneumatic shaft on both sides and the core tube of different specification is provided with different pneumatic shaft. The exchange of pneumatic shaft should be convenient and fast.

2. The core tube is driven by the pneumatic shaft and the pneumatic shaft is driven by servo motor. To avoid the deformation of core tube during winding, the ancillary supporting roll (hot roll) must be equipped. The supporting roll (with the increase of wrapping diameter) is also driven by servo motor.

3. The base paper roll is supported by 2800mm-long pneumatic shaft, whose assembling and disassembling must be simple, easy, safe and reliable. The carrying capacity of pneumatic shaft shall be more than 600kg.

4. The supporting mechanism of original scroll shall be provided with the tension control system to ensure the constant tension during winding.

5. To accurately lay the capacitive screen during winding, the equipment is provided with the locating tray for the accurate locating of the initial position of screen, which is convenient to operate. Before laying the capacitive screen, the equipment shall give prompts according to the winding layers and diameter.

6. There are two cutters: one is for end cutting, which shall not be moved during winding and the other is for tapered end cutting, which shall be moved according to the winding speed. The cutting of steps can be conducted synchronously on both sides.

7. The waste papers of cutting shall be collected by the winding mechanism.
