Hydraulic CNC Winding Machine Pit Vertical with Automatic Controlled

Large Image : Hydraulic CNC Winding Machine Pit Vertical with Automatic Controlled Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000,CE
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Coil Winding Machine

Filament Winding Machine

Hydraulic CNC Winding Machine Pit Vertical with Automatic Controlled

Description:

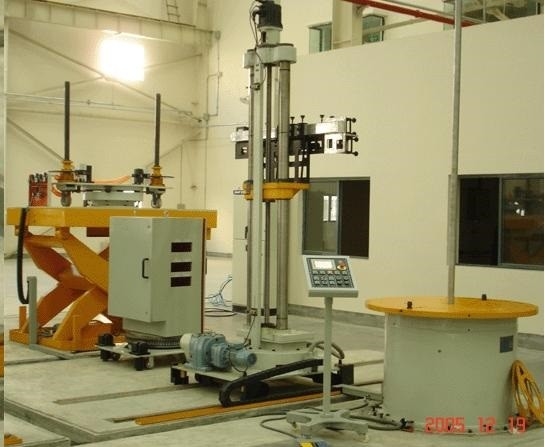

PVWM consists of pedestal, column, chuck elevation system, chuck rotation system, mobile plate platform and control system. Various winding parameters are showed on the CRTs. Operating the menu and choosing different functions by finger touch the CRTs, the technology of winding can be compiled in advance or revised.

Applications:

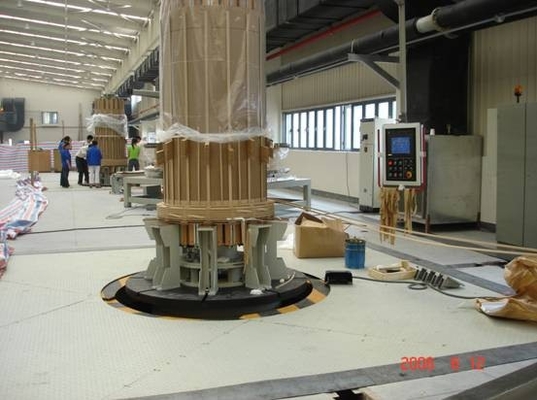

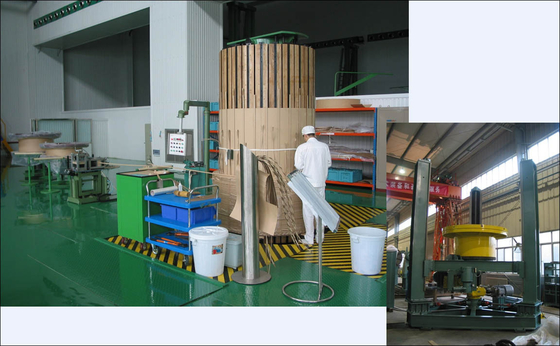

Pit Vertical Winding Machine (PVWM) is ideal equipment for making high voltage, super high voltage helical windings and disc windings of transformers

Specifications:

Item	NO.	Contents	Technical Parameters
			10t	15t	20t	25t	30t		35t
Rotary platform	1	Max. load (kg)	10000	15000	20000	25000	30000		35000
	2	Max. rotating diameter (mm)	Φ2200	Φ2800	Φ3000	Φ3000	Φ3200		Φ3500
	3	Diameter of chuck (mm)	Φ1600	Φ1800	Φ2000	Φ2000	Φ2200
	4	T-shaped groove on chuck×number: (mm×unit)	28mm×8		36mm×8
	5	Height of platform (mm)	700	700	800	850	850		900
	6	Height of chuck to platform when chuck is hoisted to the top (mm)	400
	7	Speed of chuck (stepless regulation) (r/min)	0～10			0～7			0～5
	8	Max. torque of chuck (N/M)	12000	18000	21000	28000	35000		35000
	9	Max. tension of wire (N)	9000	12000			14200
	10	Rotary motor power of chuck (KW)	11	15 15			18.5
	11	Positioning hole of chuck center (mm)	Φ220×15×Φ180		Φ240×20×Φ200
	12	Bearing clearance (mm)	≤0.2
Swinging arm	13	Height (mm)	3000
	14	Max. length (foldable) (mm)	3000	3200			3500		3800
		Max. elevating height (stroke) (mm)
Elevating mechanism	15		2500	3000
	16	Elevating speed (mm/min)	1000			700	500
	17	Servo motor power (KW)	11	15	18.5
	18	screw	3-Tr55x10	3-Tr65x10	3-Tr70 x12	3-Tr80 x12	3-Tr85 x14	3-Tr90 x16
Shutter mechanism	19	Floor area (mm)	5000×5000	5500×5500	5500×5500		6000×6000	6500×6500
	20	Extensible range of shutter (mm)	Φ700～ Φ2250	Φ800～ Φ2850	Φ900～ Φ3050		Φ1100～ Φ3250	Φ1500～ Φ3550
	21	Speed of shutter (mm/min)	1000			900		700
	22	Motor power (KW)	0.55
	23	Quantity of motors (unit)	4
Lubrication	24	Motor power of self-lubricating pump (KW)	0.2(KW)
	25	Lubricating mode	Oil
