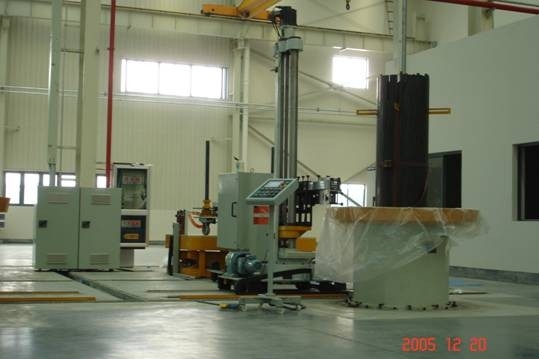

Automatic CNC Winding Machine , Reactance NC Vertical Wingding Machine

Large Image : Automatic CNC Winding Machine , Reactance NC Vertical Wingding Machine Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000,CE
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Coil Winding Machine

Filament Winding Machine

Automatic CNC Winding Machine , Reactance NC Vertical Wingding Machine

Description:

PVWM consists of pedestal, column, chuck elevation system, chuck rotation system, mobile plate platform and control system. Various winding parameters are showed on the CRTs. Operating the menu and choosing different functions by finger touch the CRTs, the technology of winding can be compiled in advance or revised.

Applications:

Pit Vertical Winding Machine (PVWM) is ideal equipment for making high voltage, super high voltage helical windings and disc windings of transformers

Specifications:

One.Main machine(Rotary platform)

Contents	Parameters
Contents	WKRJF-5/LD	WKRJF-20/LD	WKRJF-30/LD	WKRJF-40/LD
Diameter of platform	1800mm	2000mm	2400mm	3000mm
Max.rotating diameter of platform	2500mm	3500mm	4000mm	4500mm
Max. load of platform	5T	20T	30T	40T
Height of platform	500mm
Speed of platform (stepless regulation)	0~20 r/min	0~20 r/min	0~15 r/min	0~10 r/min
Max. torque of chuck	3200 N.m	12000N.m	16000N.m	25000N.m
Power of rotary platform	4 KM	11 KM	11 KM	15 KM

Two.Ourgoing arm and lifting systerm

Contents	Parameters
Contents	WKRJF-5/LD	WKRJF-20/LD	WKRJF-30/LD	WKRJF-40/LD
Max. lifting length	3000mm	3500mm	4000mm	4500mm
Primely lifting height	650mm
Lifting speed (stepless regulation)	0~12000 mm/min			0~8000 mm/min
Amouts of wire nipped	4			6
Amouts of yarn nipped	5			6
Range of wire nipped	0~50mm
Range of ourgoing arm	0~800mm	0~900mm	0~1000mm	0~1100mm
