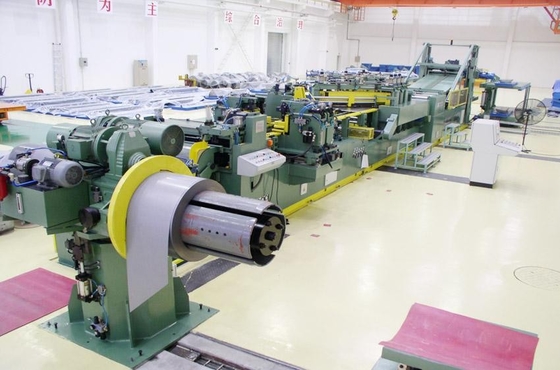

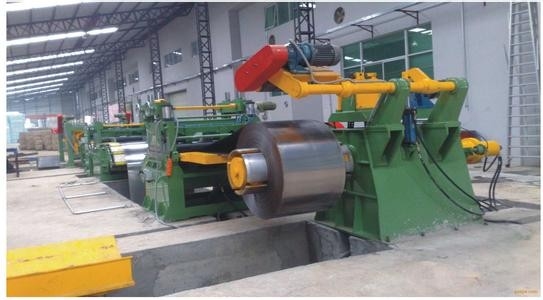

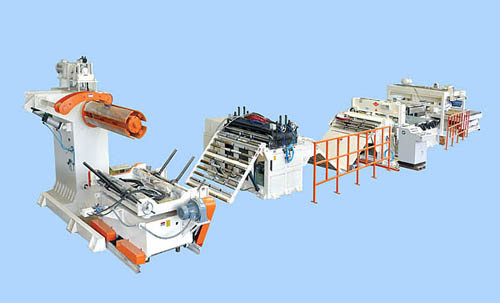

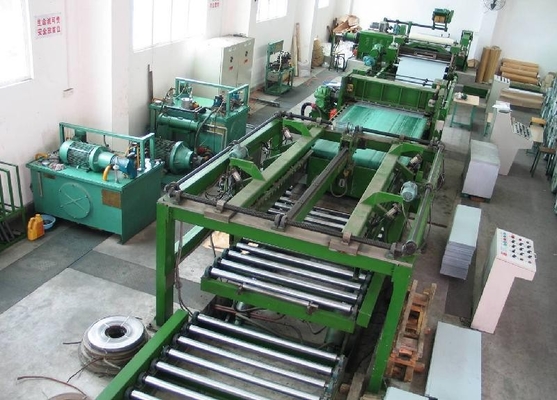

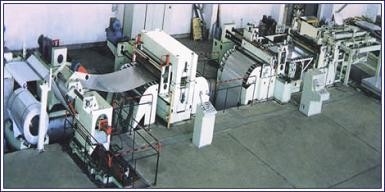

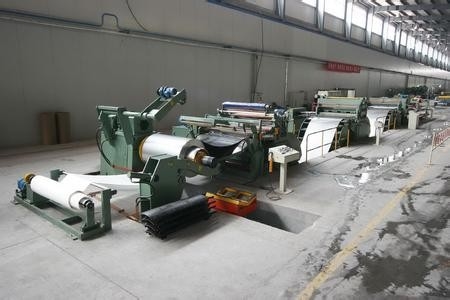

Silicon Steel Lamination Cut to Length Machine for Steel Strip Cutter

Large Image : Silicon Steel Lamination Cut to Length Machine for Steel Strip Cutter Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000,CE
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Coil Winding Machine

Filament Winding Machine

Silicon Steel Lamination Cut to Length Machine for Steel Strip Cutter

Description:

The kind of steel coil cut-to length/shearing line is specifically for metal coil after uncoiling,leveling, fixed length, cutting into required length plate and stacking.It is suitable for processing of cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.steel coil cut-to-length/shearing line consists of loading car, un-coiler machine, leveling machine, feeding mechanism, cutting machine,conveying machine, stacking equipment and other components.

Applications:

1. The series steel coil cut to length line is for the metal rolling plate after coiling, leveling, fixed length, cutting into the required length flat sheet and stacking.

2. It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.

3. Cross cutting line consists of loading car, uncoiler, leveling, feeding mechanism, cutting machines, transport equipment, stacking equipment and other components.

Specifications:

Model	Sheet Thickness (mm)	Coil Weight (ton)	Coil Width (mm)	Cut speed (M/min)	Total power (Kw)	Occupied area (M)
CTLH-400	0.2—2.0	5 MAX	150-600	0-60	65	18X4
CTLH-600	0.2—2.0	10 MAX	200-800	0-60	90	19X4
CTLH-850	0.2—2.0	15 MAX	300-1000	0-60	150	20X4
CTLH-1300	0.2—2.0	15 MAX	300-1300	0-60	210	25X8
CTLH-1600	1.0—8.0	30 MAX	400-1550	0-60	360	30X14
CTLH-2000	4.0—12.0	35 MAX	500-1950	0-45	650	55X14
