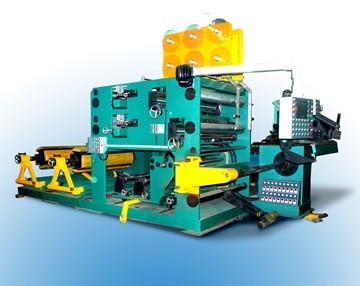

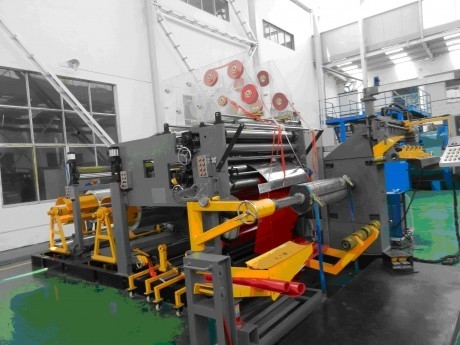

High Speed CNC Winding Machine , automatic coil winding machine

.N

ITEM

SPECIFICATION

1

Coil range

1.1

Axial length

Max:600 mm

1.2

Axial length(with lead)

Max:720 mm

1.3

Outside diameter(not include wires)

φ600

1.4

( Max )Outside diameter(max)

φ620

1.5

( Min )Inside diameter(min)

No limited

1.6

Coil type

Round, ellipse, rectangle(Coil weight≤500kg)

2

Coil material

2.1

Copper or aluminum foil

width≤600mm,thickness0.3-1.5mm;                             Coil inside diameter:Φ400;                                          Coil outside diameter≤Φ800.

2.2

Enameled wire

Wire:MaxΦ0.3-3.0 mm;                                              Flat wire:Max 3×12 mm

3

Conduct foil decoiling device

Pneumatic tension way

3.1

Support cylinder length

620 mm

3.2

Support cylinder adjust range

Φ470—φ520

3.3

Support cylinder load(max)

1000 KG

3.4

Expanding force

Max:5000N-M(Stepless adjustable)

3.5

Tension working force

0---0.6 Mpa

4

Winding device

4.1

Winding speed

0-20 n/min

4.2

Working torque(max)

≥ 5000 N-M

4.3

Winding power

11 KW

4.4

Speed regulation way

Frequency stepless speed regulation

5

Layer insulation decoiler device

5.1

Layer insulationinstallation axle

2 sets

5.2

Layer insulation coil outside diameter

≤φ400 mm

5.3

Layer insulation coil inside diameter

Φ76 mm

5.4

Layer insulation coil width

Max:620 mm

5.5

Decoiling way

Mechanic clamping

5.6

Damping fore(2 sets independent)

≤50 N-M

6

Rectify device

6.1

Rectify method

Servo motor system auto correct

7

Electrical system

PLC auto control

7.1

Count digits

4 digits(0.0-999.9)(Count precision:0.1 turn)

7.2

Basic function

Step input, revisable, power failure memory

7.3

Work interface

Touch control panel(Chinese and English )

7.4

Total power

15KW
