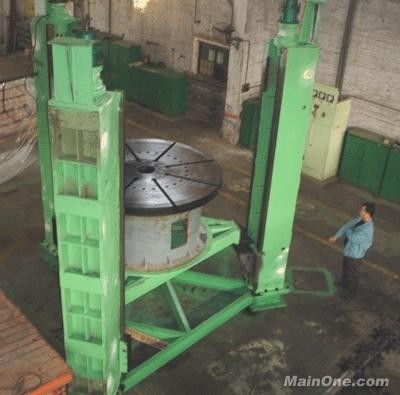

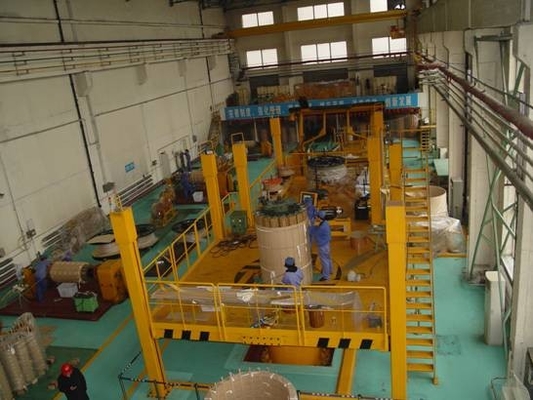

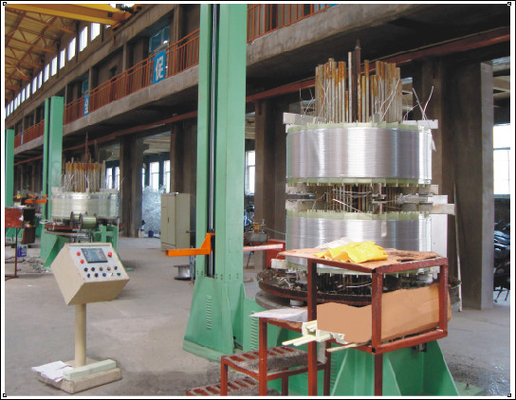

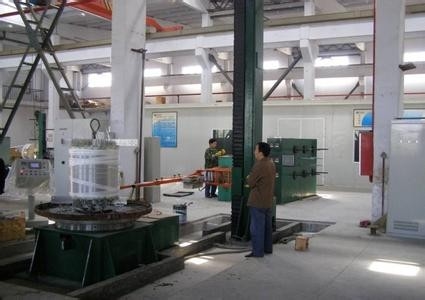

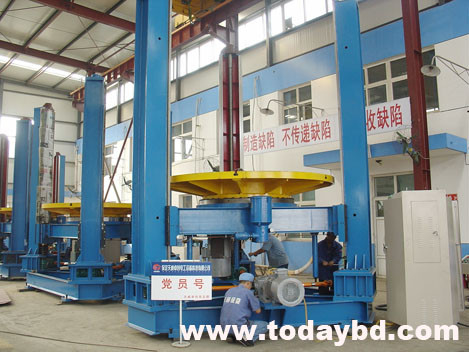

Overfloor Vertical CNC Winding Machine Horizontal with high voltage

Large Image : Overfloor Vertical CNC Winding Machine Horizontal with high voltage Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000,CE
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Coil Winding Machine

Filament Winding Machine

Overfloor Vertical CNC Winding Machine Horizontal with high voltage

Description:

OVWM consists of spindle box, tail, bed rest, electrical control system, vertical and horizontal pressing mechanism (optional), pneumatic conductor clip (optional), hydraulic station (optional), decoiler (optional).
horizontal winding machine,horizontal winding machine for sale,china horizontal winding machine expoter

Applications:

Overfloor Vertical Winding Machine (PVWM) is ideal equipment for making high voltage, super high voltage helical windings and disc windings of transformers

Specifications:

No.	Major technical parameters	Parameters
No.	Major technical parameters	OPW-15/LD(NC) NC vertical winding machine	OPW-25/LD(NC) NC vertical winding machine	OPW-35/LD(NC) NC vertical winding machine
1	Diameter of chuck (㎜)	1600	1800	2000
2	Load of chuck (㎏)	15000	25000	35000
3	Speed of chuck(AC variable-frequency, stepless speed regulation) (rpm)	0-10	0-7	0-5
4	Max. torque of chuck (N.m)	15000	25000	40000
5	Max. rotating diameter of chuck (㎜)	2800	3200	3500
6	Elevating stroke of operating platform (㎜)	3000	3200	3200
7	Area of operating platform (㎜)	5500×550mm	5500×550mm	6000×6000mm
8	Speed of operating platform (㎜/min)	0-800	0-800	0-800
9	Diameter of center of operating platform(electrically adjust) (㎜)	800～2850	1200～3250	1500～3600
10	Load of operating platform (㎏)	3000	3000	3000
11	Minimum height of operating platform to the ground (㎜)	450	450	460
12	Area of decoiler platform (㎜)	5500×4200	5500×4200	6000×4500
13	Stroke of decoiler platform (㎜)	3000	3200	3200
14	Maximum load of decoiler platform (㎏)	12000	15000	15000
15	Minimum height of decoiler platform to the ground (㎜)	350	550	550
16	Shift length of pneumatic clamper on operating platform (㎜)	2400	2400	2400
17	Braking force of pneumatic clamper (N)	500～4000	500～4000	500～4000
18	Motor power of rotary platform (KW)	15	18.5	22
19	Motor power of operating platform (KW)	4×1	4×1	4×1.5
20	Motor power of decoiler platform (KW)	4×1	4×1.5	4×2.2
21	Total power (KW)	30	35	42
22	power	50Hz,380V±10%
23	environment	-5～40℃
