High Speed Coil Winding Machine Automatic for HV Foil Winding
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Coil Winding Machine,Filament Winding Machine |
||
|---|---|---|---|
High Speed Coil Winding Machine Automatic for HV Foil Winding
Description:

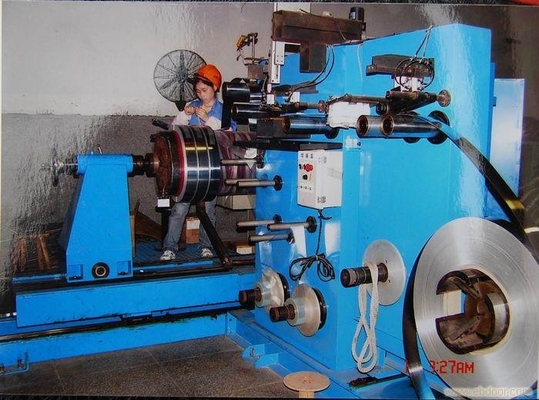

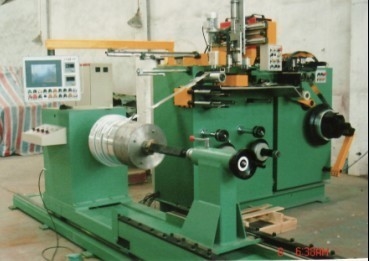

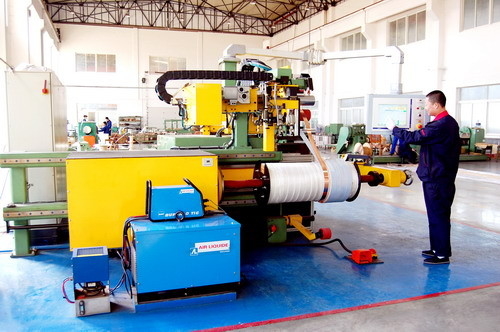

HV Foil Winding Machine is used to wind HV coils with foil strip. Total turns, segment turns (stop position), deceleration turns and quantitative movement etc can be set via touch screen
· 1.Automatic offset rectifying of foil and constant tension of layer insulation and foil are archived in the high-speeding winding process.
· 2.Accurate positioning stop points can be present in the program
· 3.The machine equips with automatic welding plants.
Applications:

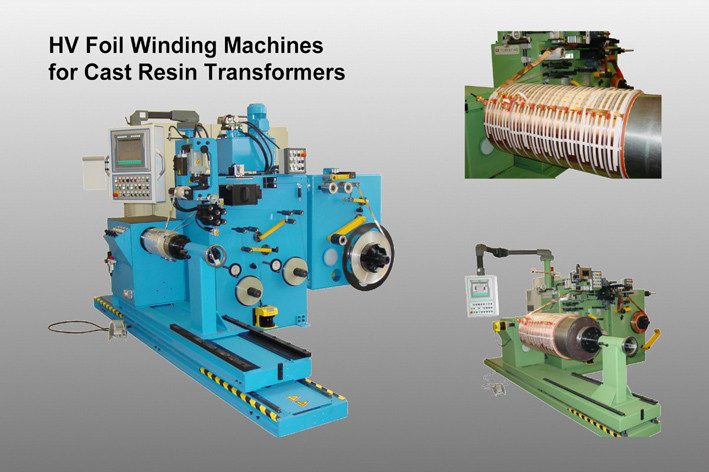

HV foil winding machine is special machinery for winding the high-voltage foil coil of cast resin type transformers.
It has features,
Specifications:
Items |
Model |
| HVW-150/1500 | |
| Max O.D diameter(mm) | 1000 |
| Width of foil sheet(mm) | 1500 |
Length(mm) |
700-1600 |
| Thickness of foil(mm) |
Copper:0.1-1.2 Aluminum:0.1-1.5 |
| Width of foil(mm) | 30-150 |
| Thickness of Layer Insulation(mm) | 0.01-0.05 |
| Tension(N) |
Foil:30-1800 :Layer Insulation:10-300 |
| Winding speed(r/min) | 0-150 stepless speed regulating |
| Record of Winding Turns | 0-500, Accuracy 0.01 |
| Correction accuracy(mm) | ±1 |
