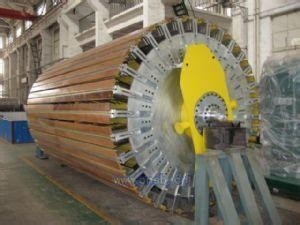

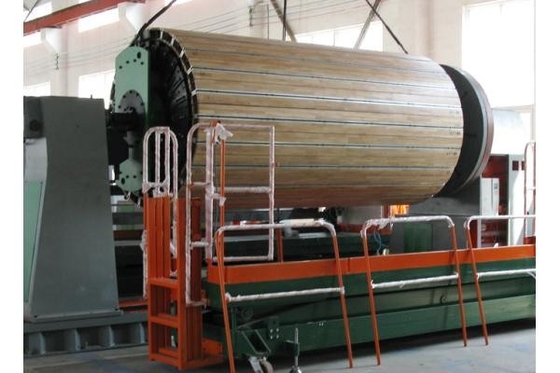

Automatic CNC Winding Machine For Expandable Winding Mandrel

Large Image : Automatic CNC Winding Machine For Expandable Winding Mandrel Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Coil Winding Machine

Filament Winding Machine

Automatic CNC Winding Machine For Expandable Winding Mandrel

Description:

EWM consists of mandrel body, expandable mechanism, arc supporting plates, expandable linings, locking
device of mandrel, device for connecting mandrel and winding machine.

Applications:

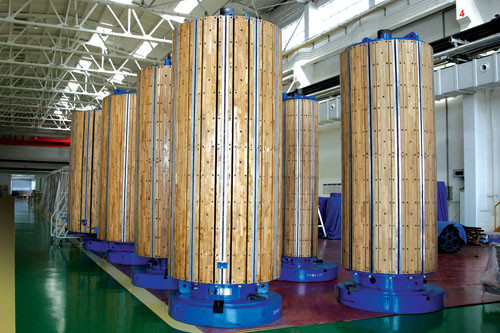

Winding Mandrel (EWM) is a newly special mandrel for winding transformer coils in vertical or horizontal winding machines

Specifications:

type	Diameter range(mm)	Spoke length(mm)	Spoke quantity	Spoke space(mm)	Total length (without spindle head)	weight	load
RXM-1A	φ270~350	1500	6	5~45mm	1190	0.075T	0.6T
RXM-2A	φ340~470	1800	6	5~45mm	1160	0.09T	0.6T
RXM-3A	Φ460~610	1800	8	5~45mm	1724	0.15T	1T
RXM-3B	φ600~780/φ770~950	2000	12	5~45mm	1724	0.2T	1.5T
RXM-4A	Φ940~1140/φ1130~1330	2000	18	5~45mm	2290	0.95T	3T
RXM-4B	Φ1320~1520/φ1510~1710	3000	18	5~45mm	2290	1.02T	3T
RXM-5B	Φ1700~1900/φ1890~2090	3000	18	5~45mm	3130	2.5T	8T
RXM-6B	Φ2050~2300/φ2290~2540	3000	24	5~45mm	3130	3.7T	8T
RXM-7B	Φ2500~2800/φ2780~3080	3000	30	5~45mm	3430	5.5T	10T

Parameter Model	Diameter Range	Batten Length	Batten Quantity	Total Length Excluding Spindle Head	Weight	Max Load
1XB	φ160~210 mm	1000 mm	8	1190 mm	75 kg	600 kg
2XB	φ200~260 mm	1000 mm	8	1160 mm	90 kg	600 kg
3XB	φ210~280 mm	1500 mm	8	1724 mm	150 kg	1000 kg
4XB	φ270~350 mm	1500 mm	8	1724 mm	200 kg	1500 kg
0B	φ340~470 mm (φ450~580)	2000 mm	12	2290 mm	950 kg	3000 kg
1B	φ400~530 mm (φ510~640)	2000 mm	12	2290 mm	1020 kg	3000 kg
2B	φ600~780 mm (φ760~940)	2700 mm	12	3130 mm	2500 kg	8000 kg
3B	φ850~1050 mm (φ1030~1230)	2700 mm	16	3130 mm	3700 kg	8000 kg
4B	φ1125~1325 mm (φ1305~1505)	3000 mm	18	3430 mm	5500 kg	10000 kg
5B	φ1460~1660 mm (φ1640~1840)	3000 mm	18	3430 mm	7300 kg	12000 kg
6B	φ1800~2060 mm (φ2040~2300)	3200 mm	24	3630 mm	9800 kg	12000kg
7B	φ2420~2720 mm (φ2700~3000)	3000 mm	30	3690 mm	13000 kg	15000 kg
