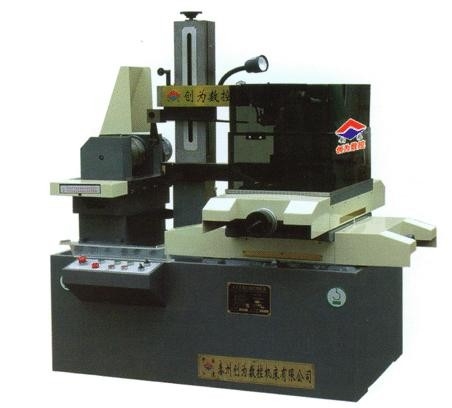

High Precision CNC EDM Cutting Machine For Non - Ferrous Metal

Large Image : High Precision CNC EDM Cutting Machine For Non - Ferrous Metal Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

wire cut edm machine

stainless steel laser cutting machine

Description:

The machine using the electrode wire as tool, under CNC control system, carries on cutting processing according to the predetermined path to the work piece. The small taper cutting refers to the method that the electrode wire carries on cutting processing to the work piece by a certain tilt angle(≤6°or≤12°)

Applications:

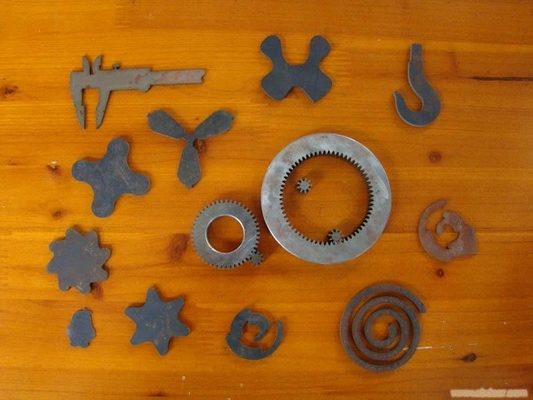

It is suitable to processing the various molds, models and complex shape components as high accuracy, high hardness and high toughness, also all kinds of conducting material such as non-ferrous metal, tool steel, alloyed steel. Widely applied in the industry field such as astronautics aviation, instrument measuring appliance, electrical appliances, machinery, automobile, light industry and war industry enterprise

Specifications:

Machine Type	DK7725Z	DK7732Z	DK7740Z	DK7750Z	DK7763Z	DK7780Z	DK77100Z
X axis stroke (mm)	250	320	400	500	630	800	1000
Y axis stroke (mm)	320	400	500	630	800	1000	1200
Z axis stroke (mm)	150	200	200	250	350	400	400
U.V axis stroke	70mm
Max. cutting thickness (mm)	300	400	400	450	550	600	600
Max. load-bearing weight (kg)	120	200	320	500	960	1200	1500
Work table width (mm)	320	360	460	540	650	820	1010
Work table length (mm)	510	610	690	910	1030	1300	1500
Machine tool weight (kg)	1200	1400	1600	2300	2800	5000	6000
Machine external dimension (mm)	1420X1040 X1600	1550X1170 X1700	1800X1380 X1700	2060X1760 X1850	2250X2250 X1950	2900X2800 X2250	3200X3000 X2250
Processing taper and thickness	6°/80mm,12°/80mm(noted in the contract)
Processing surface roughness	Ra2.5μm 100 mm2/min
Max. material removal rate	GB7926 Standard
Precision	GB7926 Standard
X.Y Axis position accuracy	GB7926 Standard
Repetition position accuracy	0.001 mm
Min. work command
Electrode wire diameter	Φ0.16～Φ0.22mm(Φ0.18 mm advised by the company)
Electrode wire line speed	11 m/s
Working fluid	DX-1;DX-4
Power supply	380V,three-phase,50Hz
Power	≤2kw
Relative humidity	30%～80%
