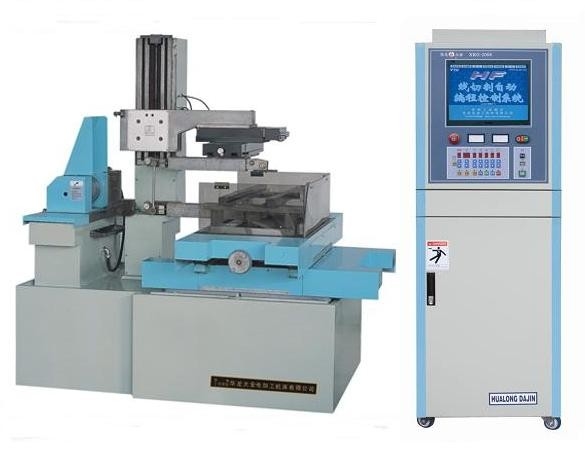

Full Automatic EDM Cutting Machine / Equipment With 70mm U.V Axis
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | wire cut edm machine,cnc edm wire cut machine |
||
|---|---|---|---|
Description:
The machine using the electrode wire as tool, under CNC control system, carries on cutting processing according to the predetermined path to the work piece. The small taper cutting refers to the method that the electrode wire carries on cutting processing to the work piece by a certain tilt angle(≤6°or≤12°)
Applications:
It is suitable to processing the various molds, models and complex shape components as high accuracy, high hardness and high toughness, also all kinds of conducting material such as non-ferrous metal, tool steel, alloyed steel. Widely applied in the industry field such as astronautics aviation, instrument measuring appliance, electrical appliances, machinery, automobile, light industry and war industry enterprise
Specifications:
|
Machine Type |
DK7725Z |
DK7732Z |
DK7740Z |
DK7750Z |
DK7763Z |
DK7780Z |
DK77100Z |
|
X axis stroke (mm) |
250 |
320 |
400 |
500 |
630 |
800 |
1000 |
|
Y axis stroke (mm) |
320 |
400 |
500 |
630 |
800 |
1000 |
1200 |
|
Z axis stroke (mm) |
150 |
200 |
200 |
250 |
350 |
400 |
400 |
|
U.V axis stroke |
70mm |
||||||
|
Max. cutting thickness (mm) |
300 |
400 |
400 |
450 |
550 |
600 |
600 |
|
Max. load-bearing weight (kg) |
120 |
200 |
320 |
500 |
960 |
1200 |
1500 |
|
Work table width (mm) |
320 |
360 |
460 |
540 |
650 |
820 |
1010 |
|
Work table length (mm) |
510 |
610 |
690 |
910 |
1030 |
1300 |
1500 |
|
Machine tool weight (kg) |
1200 |
1400 |
1600 |
2300 |
2800 |
5000 |
6000 |
|
Machine external dimension (mm) |
1420X1040 X1600 |
1550X1170 X1700 |
1800X1380 X1700 |
2060X1760 X1850 |
2250X2250 X1950 |
2900X2800 X2250 |
3200X3000 X2250 |
|
Processing taper and thickness |
6°/80mm,12°/80mm(noted in the contract) |
||||||
|
Processing surface roughness |
Ra2.5μm 100 mm2/min |
||||||
|
Max. material removal rate |
GB7926 Standard |
||||||
|
Precision |
GB7926 Standard |
||||||
|
X.Y Axis position accuracy |
GB7926 Standard |
||||||
|
Repetition position accuracy |
0.001 mm |
||||||
|
Min. work command |
|
||||||
|
Electrode wire diameter |
Φ0.16～Φ0.22mm(Φ0.18 mm advised by the company) |
||||||
|
Electrode wire line speed |
11 m/s |
||||||
|
Working fluid |
DX-1;DX-4 |
||||||
|
Power supply |
380V,three-phase,50Hz |
||||||
|
Power |
≤2kw |
||||||
|
Relative humidity |
30%～80% |
||||||
