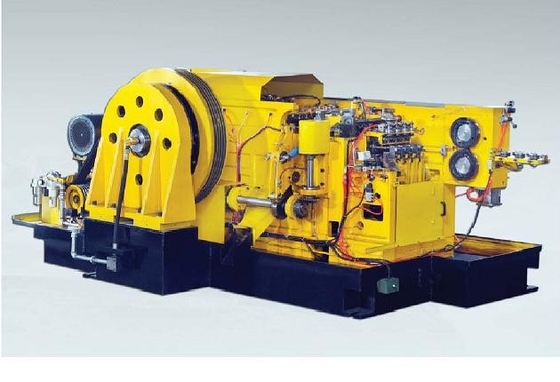

Industry Rivet Cold Heading Machine Nut Bolt Making 4 stations

Large Image : Industry Rivet Cold Heading Machine Nut Bolt Making 4 stations Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Rivet making machine

Cold Heading Machine

Industry Rivet Cold Heading Machine Nut Bolt Making 4 stations

Description:

Heading is a metalworking process which incorporates the forging, extruding and upsetting process. It is often performed in the cold state, resulting in cold working. This process produces a near net shape work piece, which means the final product is almost finished.
Older machines are known as single-stroke headers, while newer machines are known as double-stroke headers, because they have two strokes; one stroke moves the workpiece into the machine and the second heads the work piece.

Specifications:

Items	Unit	Model 134L
Number of stations	N/A	4
Pressure	kg	120,000
Max. cutting diameter	mm	Ø15
Max. cutting length	mm	190
Production rate	Pcs/min	30-50
Punching stroke	mm	30
Distance through die	mm	160
Main slide travel	mm	270
Main motor power	kw	37
Shearing mold dimension	mm	Ø63×69
Punching dimension	mm	Ø60×130
Die dimension	mm	Ø86×190
Die spacing	mm	110
Machine weight	kg	31,000
Screw diameter	mm	8-13
Length of part under screw head	mm	25-152
