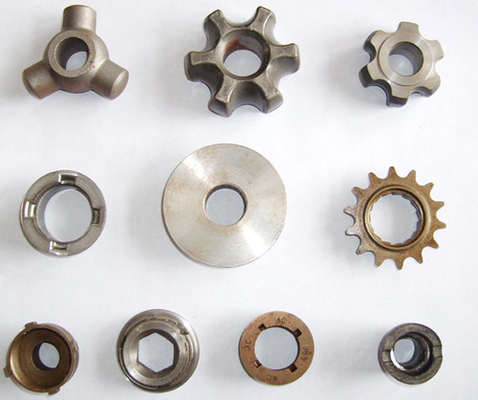

Metal Parts Cold Extrusion Press For Gears For Bicycle Flywheels

Large Image : Metal Parts Cold Extrusion Press For Gears For Bicycle Flywheels Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WKH
Certification:	ISO9001:2000
Model Number:	N/A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Strong wooden package in accordance with buyer’s requirements
Delivery Time:	30~180 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	1~30 sets per month

Contact Now

Detailed Product Description

High Light:

Aluminium Extrusion Press

Horizontal Extrusion Press

Quick Detail:

Extrusion press used for collapsible tube and can producing. Materials of Aluminum, iron and Zinc are all suitable for producing with impact extrusion press, and products include cans, bottles, capacitor shell, battery case, etc. Extrusion press can be categorized into Horizontal extrusion & Vertical extrusion; mechanic extrusion & hydraulic extrusion. We have rich experiences in the can production, we know well about each type of the extrusion press and we are able to provide whole solution to you.

Applications:

Used for production of collapsible tube, cans, bottles with the materials of aluminum, Iron and zinc. For example, aluminum cans for capacitor shell, aluminum shells for automobile filters, aluminum cans for extinguisher, zinc tube for battery case. Extrusion press is widely applied in the industries of electric, automobile, cosmetics, meter, aviation, military etc.

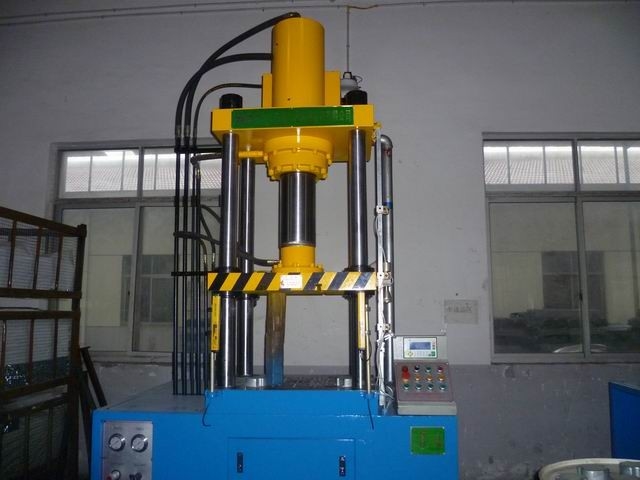

Specification of vertical hydraulic extrusion press

Model	100SA	150SA	200SA	300SA	500SA	650SA	800SA	1000SA
Nominal pressure (ton)	100	150	200	300	500	650	800	1000
Extrusion stroke (mm)	300	350	400	400	500	500	500	500
Pressure stroke (mm)	150	150	200	200	200	200	250	250
Die set height (mm)	600	600	700	800	900	900	1000	1000
Table dimension(FB×LR) (mm)	500×500	500×500	700×700	700×700	800×800	1000×1000	1200×1000	1300×1200
Motor power (kw)	5.5	7.5	30	30	37	37	59	74

Specification of Horizontal extrusion press:

Item	Unit	60A	60B	180	200B	200C	200K
Nominal pressure	KN	600	600	1800	2000	2000	2000
Nominal pressure stroke	mm	5	5	5	5	5	5
Stroke of slide	mm	220	145	250	300	190	155
Stroke per minute	Min-1	60	100	65	65	85	100
Max shut height	mm	355	355	460	480	480	480
Adjustment of shut height	mm	5	5	12	12	12	12
Max diameter of can	mm	Φ25	Φ20	Φ48	Φ55	Φ50	Φ45
Max length of can	mm	130	90	170	200	110	100
Power of main motor	KW	5.5	5.5	11	11	11	11

Item	Unit	265	315A	315B
Nominal pressure	KN	2650	3150	3150
Nominal pressure stroke	mm	8	10	10
Stroke of slide	mm	342	385	270
Stroke per minute	Min-1	58	48	80
Max shut height	mm	580	660	660
Adjustment of shut height	mm	12	12	12
Max diameter of can	mm	Φ60	Φ68	Φ68
Max length of can	mm	240	270	225
Power of main motor	KW	22	30	45

Item	Unit	500B	500A
Nominal pressure	KN	5000	5000
Nominal pressure stroke	mm	20	60
Stroke of slide	mm	420	410
Stroke per minute	Min-1	36	16
Max shut height	mm	960	820
Adjustment of shut height	mm	15	15
Max diameter of can	mm	Φ90	Φ116
Max length of can	mm	320	300
Power of main motor	KW	90	110
