Automatic Horizontal Gear Impact Extrusion Press For Gears Blank
|
Product Details:
|
Detailed Product Description
| High Light: | Aluminium Extrusion Press,Horizontal Extrusion Press |
||
|---|---|---|---|
Applications:

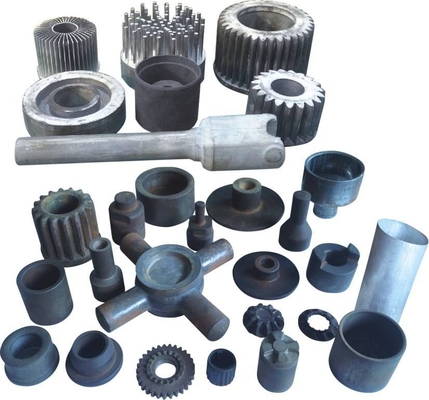

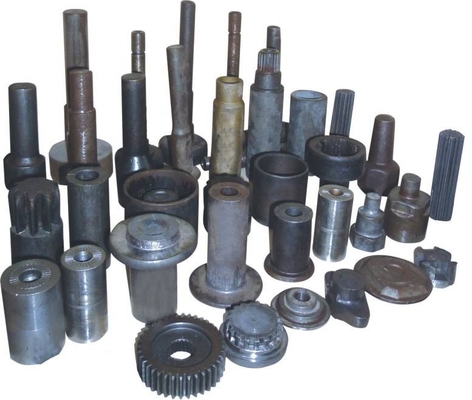

Used for production of collapsible tube, cans, bottles with the materials of aluminum, Iron and zinc. For example, aluminum cans for capacitor shell, aluminum shells for automobile filters, aluminum cans for extinguisher, zinc tube for battery case. Extrusion press is widely applied in the industries of electric, automobile, cosmetics, meter, aviation, military etc.
Quick Detail:
Extrusion press used for collapsible tube and can producing. Materials of Aluminum, iron and Zinc are all suitable for producing with impact extrusion press, and products include cans, bottles, capacitor shell, battery case, etc. Extrusion press can be categorized into Horizontal extrusion & Vertical extrusion; mechanic extrusion & hydraulic extrusion. We have rich experiences in the can production, we know well about each type of the extrusion press and we are able to provide whole solution to you.

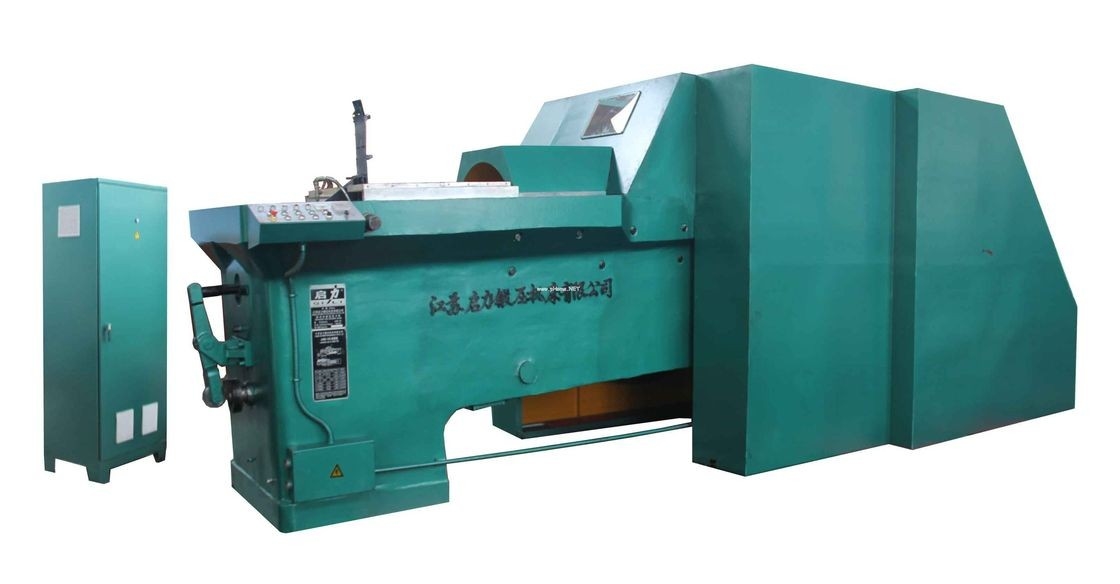

Specification of Horizontal extrusion press:
| Item | Unit | 60A | 60B | 180 | 200B | 200C | 200K |
| Nominal pressure | KN | 600 | 600 | 1800 | 2000 | 2000 | 2000 |
| Nominal pressure stroke | mm | 5 | 5 | 5 | 5 | 5 | 5 |
| Stroke of slide | mm | 220 | 145 | 250 | 300 | 190 | 155 |
| Stroke per minute | Min-1 | 60 | 100 | 65 | 65 | 85 | 100 |
| Max shut height | mm | 355 | 355 | 460 | 480 | 480 | 480 |
| Adjustment of shut height | mm | 5 | 5 | 12 | 12 | 12 | 12 |
| Max diameter of can | mm | Φ25 | Φ20 | Φ48 | Φ55 | Φ50 | Φ45 |
| Max length of can | mm | 130 | 90 | 170 | 200 | 110 | 100 |
| Power of main motor | KW | 5.5 | 5.5 | 11 | 11 | 11 | 11 |
| Item | Unit | 265 | 315A | 315B |
| Nominal pressure | KN | 2650 | 3150 | 3150 |
| Nominal pressure stroke | mm | 8 | 10 | 10 |
| Stroke of slide | mm | 342 | 385 | 270 |
| Stroke per minute | Min-1 | 58 | 48 | 80 |
| Max shut height | mm | 580 | 660 | 660 |
| Adjustment of shut height | mm | 12 | 12 | 12 |
| Max diameter of can | mm | Φ60 | Φ68 | Φ68 |
| Max length of can | mm | 240 | 270 | 225 |
| Power of main motor | KW | 22 | 30 | 45 |
| Item | Unit | 500B | 500A |
| Nominal pressure | KN | 5000 | 5000 |
| Nominal pressure stroke | mm | 20 | 60 |
| Stroke of slide | mm | 420 | 410 |
| Stroke per minute | Min-1 | 36 | 16 |
| Max shut height | mm | 960 | 820 |
| Adjustment of shut height | mm | 15 | 15 |
| Max diameter of can | mm | Φ90 | Φ116 |
| Max length of can | mm | 320 | 300 |
| Power of main motor | KW | 90 | 110 |
Specification of vertical hydraulic extrusion press
| Model | 100SA | 150SA | 200SA | 300SA | 500SA | 650SA | 800SA | 1000SA |
| Nominal pressure (ton) | 100 | 150 | 200 | 300 | 500 | 650 | 800 | 1000 |
| Extrusion stroke (mm) | 300 | 350 | 400 | 400 | 500 | 500 | 500 | 500 |
| Pressure stroke (mm) | 150 | 150 | 200 | 200 | 200 | 200 | 250 | 250 |
| Die set height (mm) | 600 | 600 | 700 | 800 | 900 | 900 | 1000 | 1000 |
| Table dimension(FB×LR) (mm) | 500×500 | 500×500 | 700×700 | 700×700 | 800×800 | 1000×1000 | 1200×1000 | 1300×1200 |
| Motor power (kw) | 5.5 | 7.5 | 30 | 30 | 37 | 37 | 59 | 74 |
