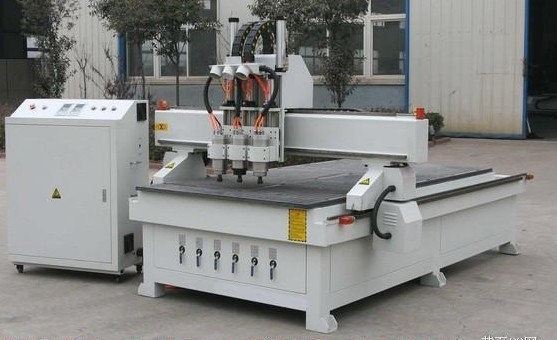

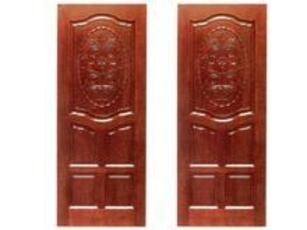

Tripple Headed Automatic CNC Wood Routers Wood Door And Window Cutting And Processing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | wood carving Router machine,5 axis cnc wood router |
||
|---|---|---|---|
Description:
1. Lathe bed is cast by Iron, X,Y axis adopts gear wheel and rack transmission, Z axis adopt high precision ball-screw transmission, imported high precision square linear, which can ensure the stability of processing.
2. High power inverter-drive spindle cooled by water. It adopts stepper motor and two motors for Y axis, which ensures running speed to be up to 25m/min.
3. DSP off-line control, transmitting files by USB flash memory.
4. Dust collecting system offers a clean working environment and reduce the manual labor
5. Vacuum table with vacuum zones, which can absorb different size materials. With vacuum pump, high suction, more convenient, stable capability.
Applications:

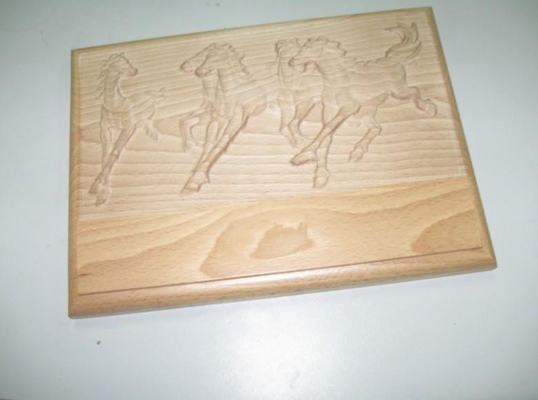

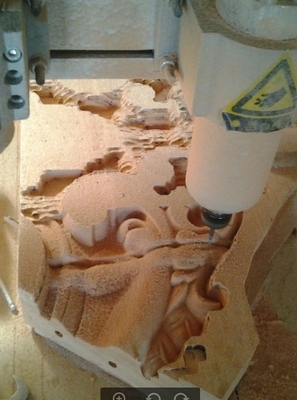

Wood cutting, engraving for mould development.
Specifications:
| X,Y working area |
1300*2500mm for single spindle working separately 650*1250mm for both spindle working synchronously |
| Z working area | 200mm |
| Table size | 1440*3040mm |
| Resolution | 0.01mm |
| Lathe structure | Seamless welded steel structure |
| X,Y structure | Rack and pinion transmission and linear orbit |
| Z structure | Germany-made ball screw |
| Max. idling speed | 35m/min |
| Spindle motor power | 3.0KW per spindle |
| Spindle rotate speed | 0-24000r/min |
| Working voltage | AC380V/50Hz (optional:220V) |
| Working mode | Stepper |
| Command | G code,HPGL,U00,mmg,plt |
| Operating system | DSP handle control system |
| Diameter of cutter | φ3.175-φ12.7 |
| Cooling mode | Water-cooling |
| Dust-collect function | Yes |
| Work-holding | By clamp |
