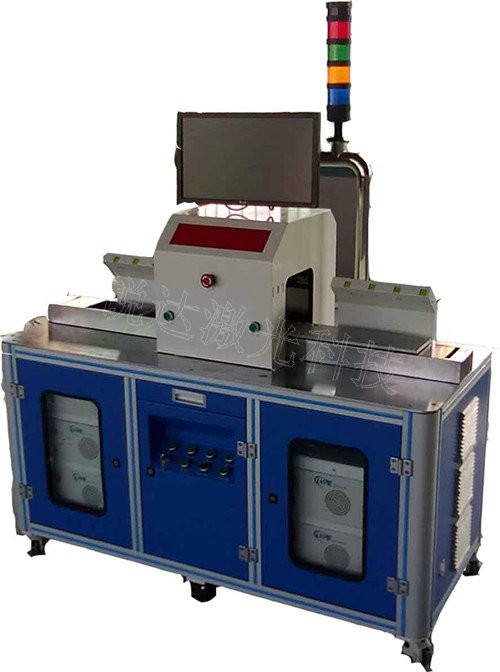

Laser tin welding machine Laser Cutting Machines for electric PCB board

Applications:

This machine is applicable for welding the precision component,sensor ,automobile accessories,battery shell sealing,electricity relay,electronic component and other industries which require the automatic welding. It has industry solutions and special clamps.

Description:

The device has three channels semi-conductor laser and shines up three spots on sheet simultaneously, make the tin paste connect with the welding part in less than one second, and realizes welding perfect effect

electronic control

1)Welding machine: control the laser power, impulse width, working format, time and so on. It can separately control output light power and time for every channel

2) Welding working platform: using programming controller PLC + expanding movement controlling model to control the platform’s movement,laser welding and so on. As the processing component is simplex, the platform movement takes a unchanged paten to avoid unstable facts brought out by engineering PC. (soft ware breakdown, system shutdown, PC breakdown )

features

● Partial welding. Based on the laser single direction, the laser energy is focused on the processing spot, so the laser welding only takes effects on the components which needs, make sure the intact function is not damaged.

●Processing time is short, process by three channels simultaneously, the whole processing time is less than 1 second, promotes the production efficiency.

● Laser is the cleanest processing way, it’s without pollution, waste gas pollution, noise pollution and environmental pollution.

● Low power consumption, the whole device’s power volume is less than 500W, it’s save cost and decrease power consumption.

● Long life time, the laser generator is made of imported chips, the life is more than 20,000hours, even more than 100,000hours.

Specifications:
