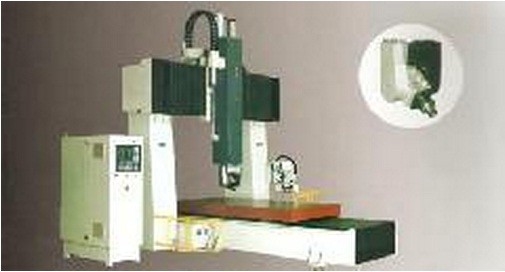

Five Axis 3D Engraving CNC Wood Routers Craftsman Wood Carving Machine 30 m/Min
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | wood carving Router machine,5 axis cnc wood router |
||
|---|---|---|---|
Description:
1. Lathe bed is cast by Iron, X,Y axis adopts gear wheel and rack transmission, Z axis adopt high precision ball-screw transmission, imported high precision square linear, which can ensure the stability of processing.
2. High power inverter-drive spindle cooled by water. It adopts stepper motor and two motors for Y axis, which ensures running speed to be up to 25m/min.
3. DSP off-line control, transmitting files by USB flash memory.
4. Dust collecting system offers a clean working environment and reduce the manual labor
5. Vacuum table with vacuum zones, which can absorb different size materials. With vacuum pump, high suction, more convenient, stable capability.
Applications:
Wood cutting, engraving for mould development.
Specifications:
|
No. of vacuum zones |
1 |
|
Table size X (mm) |
6000 |
|
Table size Y (mm) |
5000 |
|
Stroke of X-axis (mm) |
6000 |
|
Stroke of Y-axis (mm) |
5000 |
|
Stroke of Z-axis (mm) |
3000 |
|
Rapid travel speed in X |
30 m/min |
|
Rapid travel speed in Y |
30 m/min |
|
Rapid travel speed in Z |
15 m/min |
|
Rotary degree of A-axis |
0-200˚ or ±100˚ |
|
Rotary degree of C-axis |
0-400˚ or ±200˚ |
|
X, Y, Z Structure |
HIWIN ball screw, Linear guide |
|
Spindle power |
HSD 13.5KW Air-cooling |
|
Spindle Max. speed (rpm) |
24000 |
|
Collect |
ER 40 |
|
Vacuum pump |
4KW, 160m³/h |
|
Servo system |
YASKAMA servo motor and servo drivers |
|
Command language |
G Code(UG, MASTERCAM, CASMATE, ArtCAM, CorelDraw), PLT CODE |
|
Control system |
OSAI Controller |
