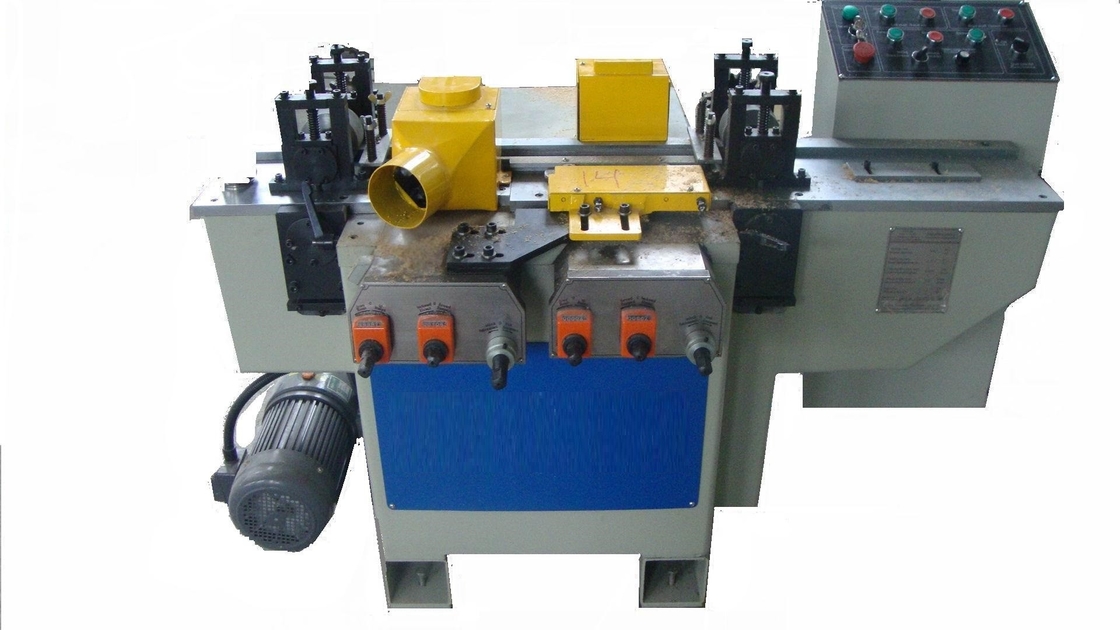

Paper Board Making Machine Electrical Insulation Paperbaord Processing Batten Chamfering Machine
Description:
The machine is designed specially for finishing bur into R edge or chamfer angle for the blocks in the transformer oil gap.
The structure: the working table (body), the milling spindle, the active roller for pressure materials plate, the supporting frame, the electrical cabinet and the de-dusting hood.
1. The working table is equipped with the guide plate and the pressure material plate.
2. The milling spindle---there are two vertical spindles right and left, and using four edge forming milling cutter. One is a fixed axis, and the other is a transverse moving axis.
3. The driving shaft of pressure material: two active rollers for pressure material.
Specifications:
| Processing width 30~60mm | |
| Processing thickness | 1.5~5m |
| RPM of tool spindle | 6000r/min |
| Feeding speed | 0-8m/min |
| Moving distance of vertical tool shaft | 30~60mm |
| Milling spindle motor | 1.5KW×2 |
| Feeding motor | 0.75KW |
