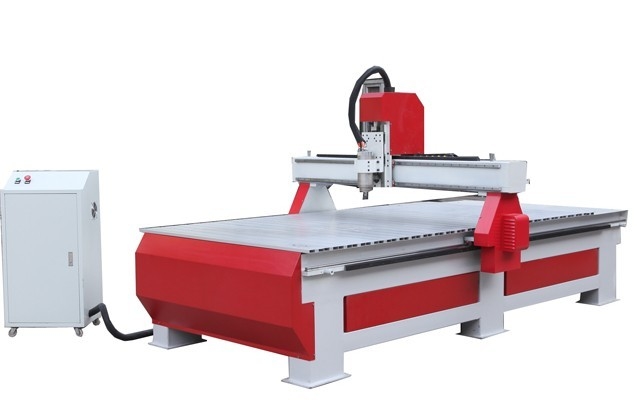

Automatic Water Cooling CNC Wood Routers Wood Working - piece Processing Wood Cutting
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | wood carving Router machine,5 axis cnc wood router |
||
|---|---|---|---|
Description:
1. Lathe bed is cast by Iron, X,Y axis adopts gear wheel and rack transmission, Z axis adopt high precision ball-screw transmission, imported high precision square linear, which can ensure the stability of processing.
2. High power inverter-drive spindle cooled by water. It adopts stepper motor and two motors for Y axis, which ensures running speed to be up to 25m/min.
3. DSP off-line control, transmitting files by USB flash memory.
4. Dust collecting system offers a clean working environment and reduce the manual labor
5. Vacuum table with vacuum zones, which can absorb different size materials. With vacuum pump, high suction, more convenient, stable capability.
Applications:
Wood cutting, engraving for mould development.
Specifications:
| X Working Area | 1300mm |
| Y Working Area | 2500mm |
| Z Working Area | 200mm |
| Table size | 1300x2500mm |
| Traveling Positioning Accuracy | ±0.05mm |
| Repositioning Positioning Accuracy | ±0.05mm |
| Table Surface | By suction |
| X,Y ,Z Structure | XY gear wheel, Z ball screw |
| Max. Power Consumption(Without spindle) | 1.5KW |
| Max. Rapid Travel Rate | 50000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power Motor | 3.2KW |
| Spindle Speed | 0-24000r/min |
| Drive System | Stepper |
| Working voltage | AC380V/60Hz |
| Command | G-code |
