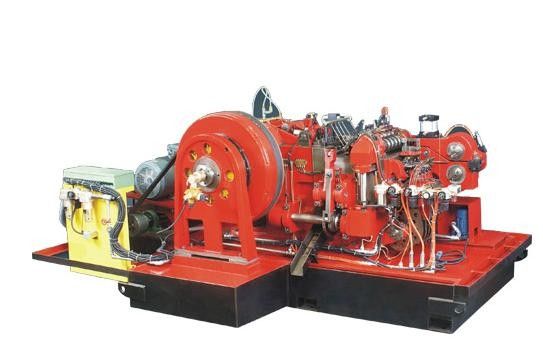

Multi Position Nut Bolt Making Machine High Precision For Rivet / Screw
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | Cold Heading Machine,Automatic Bolt Making Machine |
||
|---|---|---|---|
Multi Position Nut Bolt Making Machine High Precision For Rivet / Screw
Description:
Heading is a metalworking process which incorporates the forging, extruding and upsetting process. It is often performed in the cold state, resulting in cold working. This process produces a near net shape work piece, which means the final product is almost finished.
Older machines are known as single-stroke headers, while newer machines are known as double-stroke headers, because they have two strokes; one stroke moves the workpiece into the machine and the second heads the work piece.
Specifications:
|
Items |
Unit |
Model 134L |
|
Number of stations |
N/A |
4 |
|
Pressure |
kg |
120,000 |
|
Max. cutting diameter |
mm |
Ø15 |
|
Max. cutting length |
mm |
190 |
|
Production rate |
Pcs/min |
30-50 |
|
Punching stroke |
mm |
30 |
|
Distance through die |
mm |
160 |
|
Main slide travel |
mm |
270 |
|
Main motor power |
kw |
37 |
|
Shearing mold dimension |
mm |
Ø63×69 |
|
Punching dimension |
mm |
Ø60×130 |
|
Die dimension |
mm |
Ø86×190 |
|
Die spacing |
mm |
110 |
|
Machine weight |
kg |
31,000 |
|
Screw diameter |
mm |
8-13 |
|
Length of part under screw head |
mm |
25-152 |
